ViandPro – Aria Flush Fit Ceiling Hood 90 X 30 Black – Black Glass / Stainless Steel

Slimline Ceiling Hood for Flush Fit between Joists.
Stunning new remote control ceiling extractor with unique slimline profile.

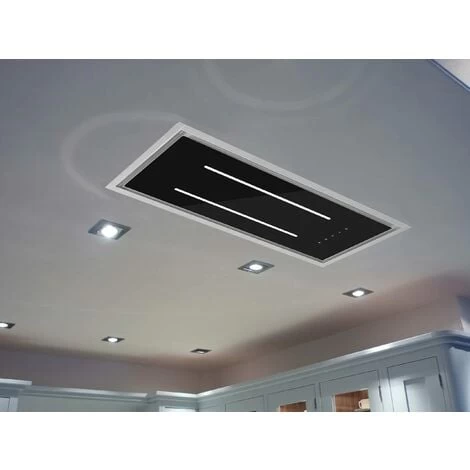

Designed to fit between standard joists (running same direction as the hob) to give a beautiful flush fit finish. (If your joists run the other way, this won�t be able to sit flush in the ceiling.)

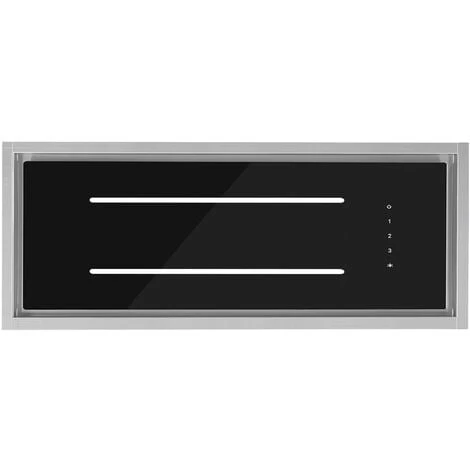

Featuring a central black glass hinged panel (the stainless steel washable grease filters are housed behind it) with changeable colour mood LED lighting and a brushed stainless steel outer frame. Attractive Stainless Steel Bluetooth remote control means it�s simple to operate without reaching up, but the hood also comes with easy touch controls for manual operation. With a powerful 600m3/hr motor, this will efficiently and effectively clear your kitchen of cooking smells, grease and odours.

The small size of the hood means it is also suitable for some undercabinet installations and chimney breast installations where ranges are installed in the old chimney alcove. Minimum height for installation is 75/65cm gas/electric.

Using 220 x 90cm rectangular (equivalent to 6?) ducting to maintain ease of fitting in the ceiling void (the 90mm height fits easily), you can simply duct straight to the wall and use a rectangular outlet, or convert to 150mm round for sourcing draughtproof or insulated ducting systems.

Please refer to a tradesperson to double check suitability for your installation.
Product will fit between 8? (203m) and higher joists plus 1 sheet of 12.5mm plasterboard
203mm +12.5mm = 215.5 mm > height of product 207mm. In case of tight installations, a further board or ply can be added to the ceiling ( imagine like a picture frame around the hood) and finished to match the ceiling giving you the room needed in the void between joists.

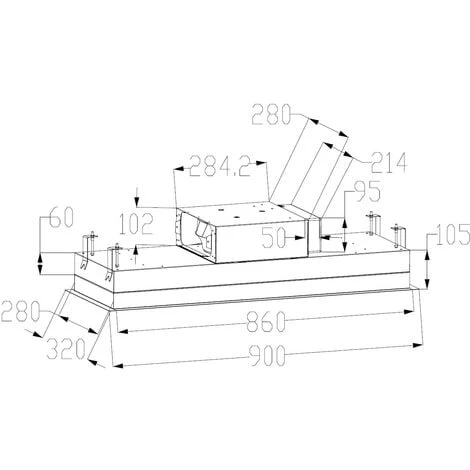

Size L 900 x D 320mm x H 207mm
Motor rating 600m3/hr
Hood Extraction Rate 411.1m3/hr
Maximum height above hob 1.6m
Noise 54 � 59dB
Weight 15.3kg
